about the U.S. Wheel OE (Series 657)
Available Sizes: 15x5, 15x6, 15x7, 15x8, 15x10, 17x7, 17x8, 17x9, 17x10, 17x12, 18x7, 18x8, 18x9, 18x10, 18x12

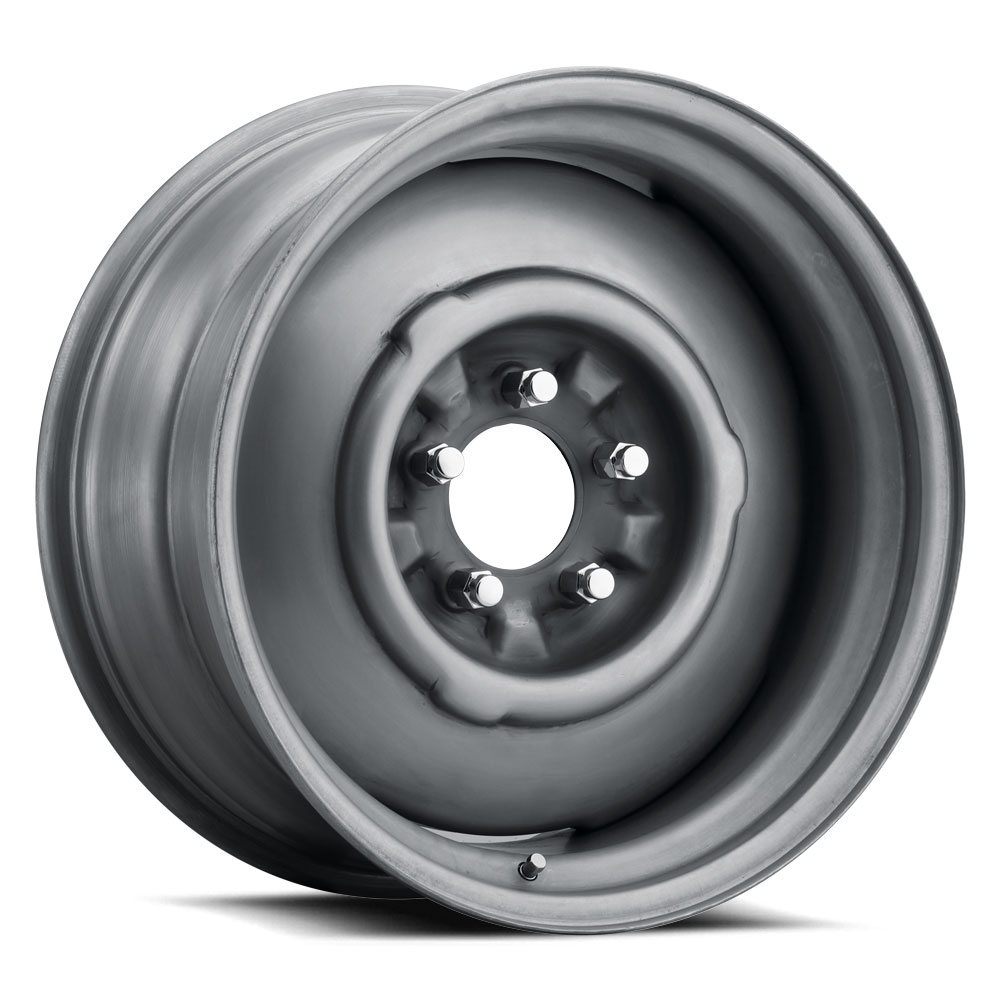

All steel, raw wheel. Image shown is 17x8. Note: 18" wheels DO NOT have windows as seen in the 17". Outside nubs for caps on 5-lug wheels measure 10 1/8", nubs on 6-lug wheels measure 11 5/8". Additional 6 & 8-lug options for this wheel style are available on our Truck tab. Image shown with custom black powder coat, trim ring, and hubcap, not included. Ability to add custom powder coat for $35/wheel once a part selection has been made. Lug nuts not included. Please check proper fitment before mounting.
U.S. Wheel OE (Series 657)
Specifications
| Part # | Finish | Size | BP 1 | BP 2 | Offset | Bore | Load | Weight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 657-5512 | RAW | 15x5 | 5x4.5 | 0 | 73.15 | 1400 | 24 | $152.57 (ea) | Buy | |
| 657-5534 | RAW | 15x5 | 5x4.75 | 0 | 73.15 | 1400 | 24 | $152.57 (ea) | Buy | |
| 657-5550 | RAW | 15x5 | 5x5 | 0 | 73.15 | 1400 | 24 | $152.57 (ea) | Buy | |
| 657-5555 | RAW | 15x5 | 5X5.5 | 0 | 108.71 | 1500 | 24 | $152.57 (ea) | Buy | |
| 657-5560 | RAW | 15x5 | 6X5.5 | -6 | 108.7 | 1500 | 20 | $152.57 (ea) | Buy | |
| 657-5612 | RAW | 15x6 | 5x4.5 | 6 | 73.15 | 1500 | 25 | $152.57 (ea) | Buy | |
| 657-5634 | RAW | 15x6 | 5x4.75 | 6 | 73.15 | 1500 | 25 | $152.57 (ea) | Buy | |
| 657-5650 | RAW | 15x6 | 5x5 | 6 | 73.15 | 1500 | 25 | $152.57 (ea) | Buy | |
| 657-5655 | RAW | 15x6 | 5X5.5 | 6 | 108.71 | 1500 | 25 | $152.57 (ea) | Buy | |
| 657-5660 | RAW | 15x6 | 6X5.5 | 6 | 108.7 | 1500 | 22 | $152.57 (ea) | Buy | |
| 657-5712 | RAW | 15x7 | 5x4.5 | 6 | 73.15 | 1500 | 26 | $158.30 (ea) | Buy | |
| 657-5734 | RAW | 15x7 | 5x4.75 | 6 | 73.15 | 1500 | 26 | $158.30 (ea) | Buy | |
| 657-5750 | RAW | 15x7 | 5x5 | 6 | 73.15 | 1500 | 26 | $158.30 (ea) | Buy | |
| 657-5755 | RAW | 15x7 | 5X5.5 | 6 | 108.71 | 1500 | 26 | $158.30 (ea) | Buy | |
| 657-5760 | RAW | 15x7 | 6X5.5 | 6 | 108.7 | 1500 | 26 | $158.30 (ea) | Buy | |
| 657-5812 | RAW | 15x8 | 5x4.5 | -6 | 73.15 | 1500 | 28 | $160.21 (ea) | Buy | |
| 657-5834 | RAW | 15x8 | 5x4.75 | -6 | 73.15 | 1500 | 28 | $160.21 (ea) | Buy | |
| 657-5850 | RAW | 15x8 | 5x5 | -6 | 73.15 | 1500 | 28 | $160.21 (ea) | Buy | |
| 657-5855 | RAW | 15x8 | 5X5.5 | -6 | 108.71 | 1500 | 28 | $160.21 (ea) | Buy | |
| 657-5860 | RAW | 15x8 | 6X5.5 | -6 | 108.7 | 1500 | 28 | $160.21 (ea) | Buy | |
| 657-5012 | RAW | 15x10 | 5x4.5 | -25 | 73.15 | 1500 | 34 | $194.55 (ea) | Buy | |
| 657-5034 | RAW | 15x10 | 5x4.75 | -25 | 73.15 | 1500 | 34 | $194.55 (ea) | Buy | |
| 657-5050 | RAW | 15x10 | 5x5 | -25 | 73.15 | 1500 | 34 | $194.56 (ea) | Buy | |
| 657-5055 | RAW | 15x10 | 5X5.5 | -25 | 108.71 | 1500 | 34 | $194.55 (ea) | Buy | |
| 657-5060 | RAW | 15x10 | 6X5.5 | -25 | 108.7 | 1500 | 34 | $194.56 (ea) | Buy |
| Part # | Finish | Size | BP 1 | BP 2 | Offset | Bore | Load | Weight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 657-8734 | RAW | 17x7 | 5X4.75 | 16 | 73.15 | 1700 | 38 | $232.20 (ea) | Buy | |
| 657-8834 | RAW | 17x8 | 5X4.75 | 6 | 73.15 | 1700 | 39 | $232.20 (ea) | Buy | |
| 657-8934 | RAW | 17x9 | 5X4.75 | 19 | 73.15 | 1700 | 40 | $245.57 (ea) | Buy | |
| 657-8034 | RAW | 17x10 | 5X4.75 | 25 | 73.15 | 1700 | 42 | $312.96 (ea) | Buy | |
| 657-8234 | RAW | 17x12 | 5X4.75 | 0 | 73.15 | 1700 | 44 | $439.64 (ea) | Buy |
| Part # | Finish | Size | BP 1 | BP 2 | Offset | Bore | Load | Weight | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 657-9712 | RAW | 18x7 | 5X4.5 | 6 | 81.03 | 1700 | 40 | $298.70 (ea) | Buy | |
| 657-9734 | RAW | 18x7 | 5X4.75 | 6 | 73.15 | 1700 | 40 | $298.70 (ea) | Buy | |
| 657-9750 | RAW | 18x7 | 5X5 | 6 | 81.03 | 1700 | 40 | $298.70 (ea) | Buy | |
| 657-9755 | RAW | 18x7 | 5X5.5 | 6 | 108.71 | 1700 | 40 | $298.70 (ea) | Buy | |
| 657-9760 | RAW | 18x7 | 6X5.5 | 6 | 108.71 | 1700 | 40 | $298.70 (ea) | Buy | |
| 657-9812 | RAW | 18x8 | 5X4.5 | 0 | 73.15 | 1700 | 42 | $298.70 (ea) | Buy | |
| 657-9834 | RAW | 18x8 | 5X4.75 | 0 | 73.15 | 1700 | 42 | $298.70 (ea) | Buy | |
| 657-9850 | RAW | 18x8 | 5X5 | 0 | 81.03 | 1700 | 42 | $298.70 (ea) | Buy | |
| 657-9855 | RAW | 18x8 | 5X5.5 | 0 | 108.71 | 1700 | 42 | $298.70 (ea) | Buy | |
| 657-9860 | RAW | 18x8 | 6X5.5 | 0 | 108.71 | 1700 | 42 | $298.70 (ea) | Buy | |
| 657-9912 | RAW | 18x9 | 5X4.5 | 0 | 81.03 | 1700 | 44 | $322.86 (ea) | Buy | |
| 657-9934 | RAW | 18x9 | 5X4.75 | 0 | 73.15 | 1700 | 44 | $322.86 (ea) | Buy | |
| 657-9950 | RAW | 18x9 | 5X5 | 0 | 81.03 | 1700 | 44 | $322.86 (ea) | Buy | |
| 657-9955 | RAW | 18x9 | 5X5.5 | 0 | 108.71 | 1700 | 44 | $322.86 (ea) | Buy | |
| 657-9960 | RAW | 18x9 | 6X5.5 | 0 | 108.71 | 1700 | 44 | $322.86 (ea) | Buy | |
| 657-9012 | RAW | 18x10 | 5X4.5 | 44 | 73.15 | 1700 | 46 | $420.68 (ea) | Buy | |
| 657-9034 | RAW | 18x10 | 5X4.75 | 44 | 81.03 | 1700 | 46 | $420.68 (ea) | Buy | |
| 657-9050 | RAW | 18x10 | 5X5 | 44 | 81.03 | 1700 | 46 | $420.68 (ea) | Buy | |
| 657-9055 | RAW | 18x10 | 5X5.5 | 44 | 108.71 | 1700 | 46 | $420.68 (ea) | Buy | |
| 657-9060 | RAW | 18x10 | 6X5.5 | 44 | 108.71 | 1700 | 46 | $420.68 (ea) | Buy | |
| 657-9212 | RAW | 18x12 | 5X4.5 | 25 | 81.03 | 1700 | 48 | $420.68 (ea) | Buy | |
| 657-9234 | RAW | 18x12 | 5X4.75 | 25 | 81.03 | 1700 | 48 | $420.68 (ea) | Buy | |
| 657-9250 | RAW | 18x12 | 5X5 | 25 | 81.03 | 1700 | 48 | $420.68 (ea) | Buy | |
| 657-9255 | RAW | 18x12 | 5X5.5 | 25 | 108.71 | 1700 | 48 | $420.68 (ea) | Buy | |
| 657-9260 | RAW | 18x12 | 6X5.5 | 25 | 108.71 | 1700 | 48 | $420.68 (ea) | Buy |
